Sensor pH:

Description MATINSA, with companies collaboration of different sectors has developed an trustworthy on-line pH meter, with high benefit and fast answer.

Also, this sensor has been certified for use in hazardous areas.

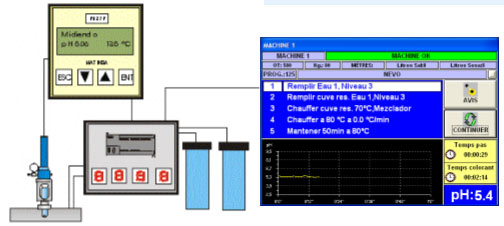

Operation The reader of pH is compatible with any market programmer with a 4-20mA inlet.

In this way is possible to measure the pH value on-line during the process. Option to print the results.

• Sensor of great solidity, stability and resistance.
• Apt for measurements at extreme temperatures, until 135ºC, and in environments with abrupt changes of temperature and/or very alkaline.
• Their three diaphragms assure a stable flow of the electrolyte.
• Barrier against ions silver.
• Sterilized “in situ”.
• Pressurizing itself externally guarantees that through the diaphragms there is a greater contact between electrolytic and sample, making in addition a auto-cleaning to such.
• It has connection a temperature sensor.

Scale pH: 0 ... 14
Unit of measurement: pH
Work temperature [ºC]: 0 ... 135
Max. Work Pressure [Bar]: 0 ... 6
Element of reference: Ag/AgCI encapsulation + barrier Ag+ ion
Diaphragms of contact: 3 Ceramics
Connector protection: S7, IP65
Body material: Glass
